Features
-
Safety Door
When the door is opened in the running state, the device will automatically stop working to ensure safe operation of equipment
-
Modular structure design
Efficient and easy to maintain
-
One-piece Silicone Dust-proof
- Effectively prevent dust from entering the interior of the equipment
- Ensure efficient and stable operation of equipment
-
High precision lead screw
Accurate and more stable control, better tooth surface effect
-
Aviation Aluminum Casting Platform
- Stable structure
- Running smoothly
-

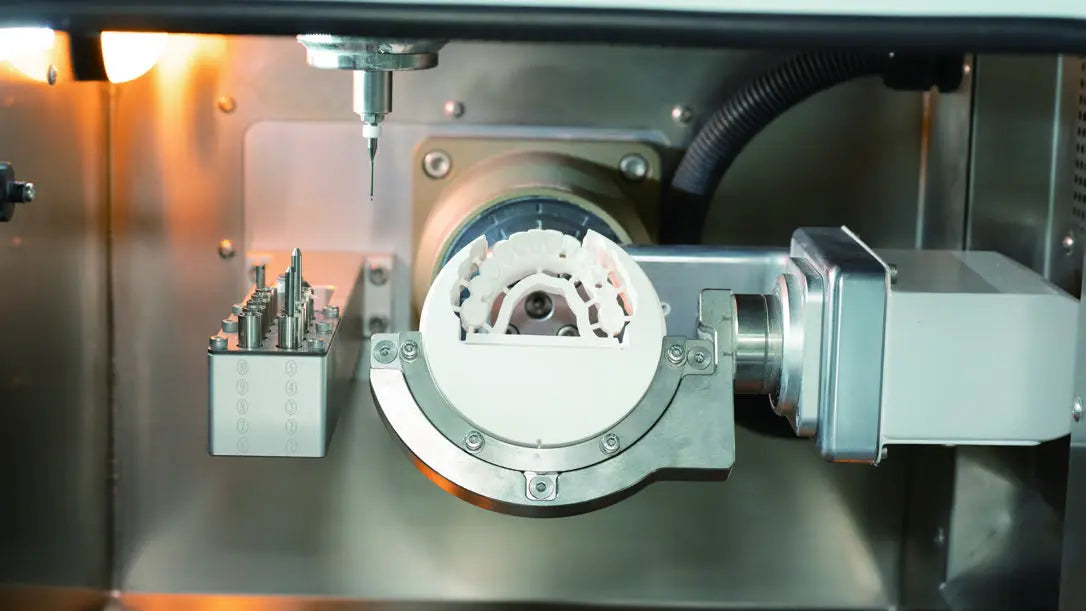

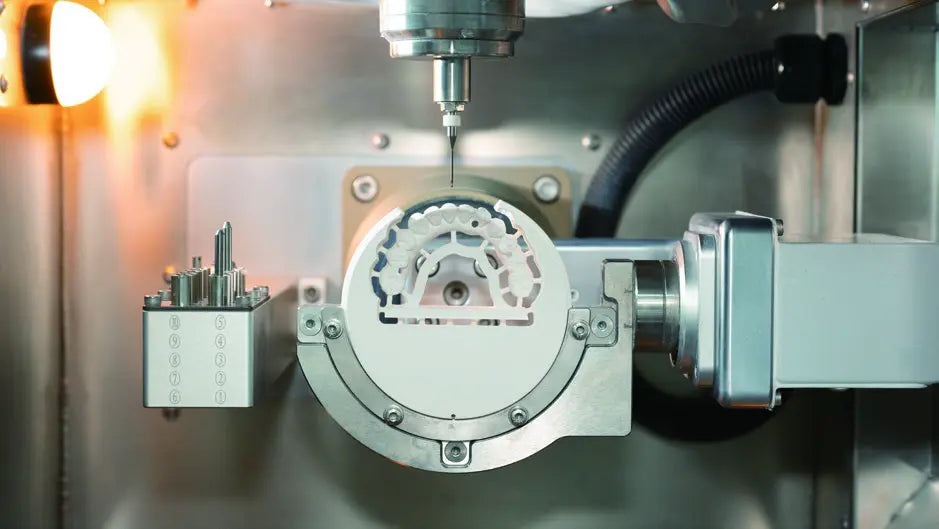

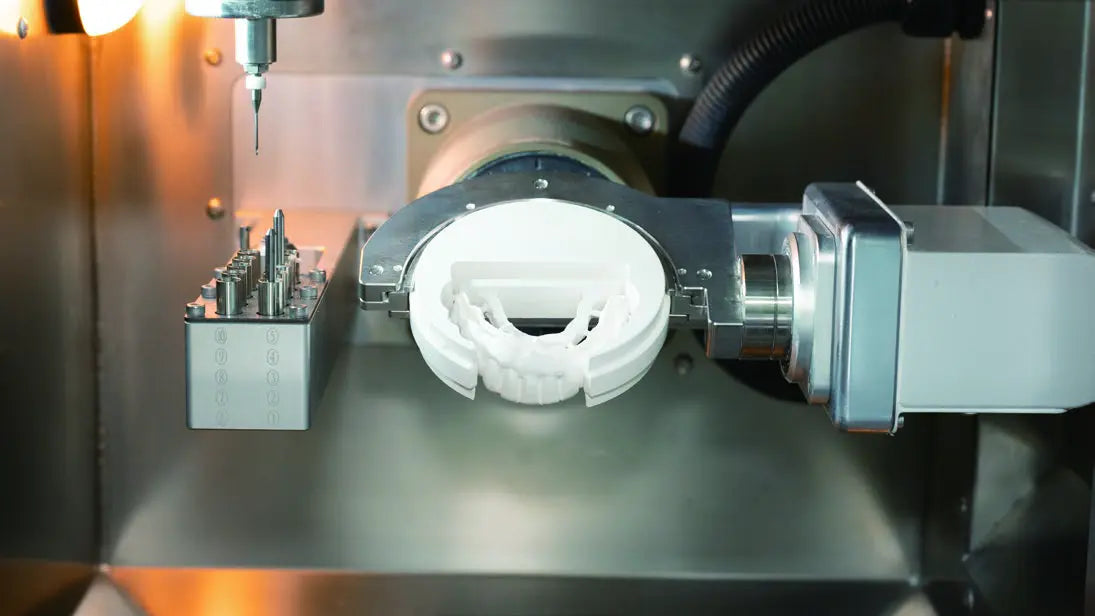

Large Angle Processing/90° Processing
- Xyz Axis: 180x110x100(mm)
- Ba Axis: B: ±30°, -90°; A: ±360°
- Realize 90° vertical processing on the buccal side of the anterior teeth
-
Automatic calibration
- Intelligent automatic calibration system
- Automatic correction of equipment accuracy
-
Harmonic drive
- Harmonic drive to ensure high precision of milling machine
-
Machine Maintenance Tips
- Intelligent reminder of equipment maintenance cycle and maintenance time
-
Status indication tri-color light
- Three colors distinguish the working status, making it easier to observe the operation of the equipment
-
Tool Life Management
- Real-time recording of tool life
- Smart reminder to change tools
- Bur diameter: 2.0 1.0 0.6 1.5 0.3mm
-
Spindle
- Maximum speed: 60000RPM
- Shank diameter: 4mm
- Power consumption: AC 1500W
Technical Parameters

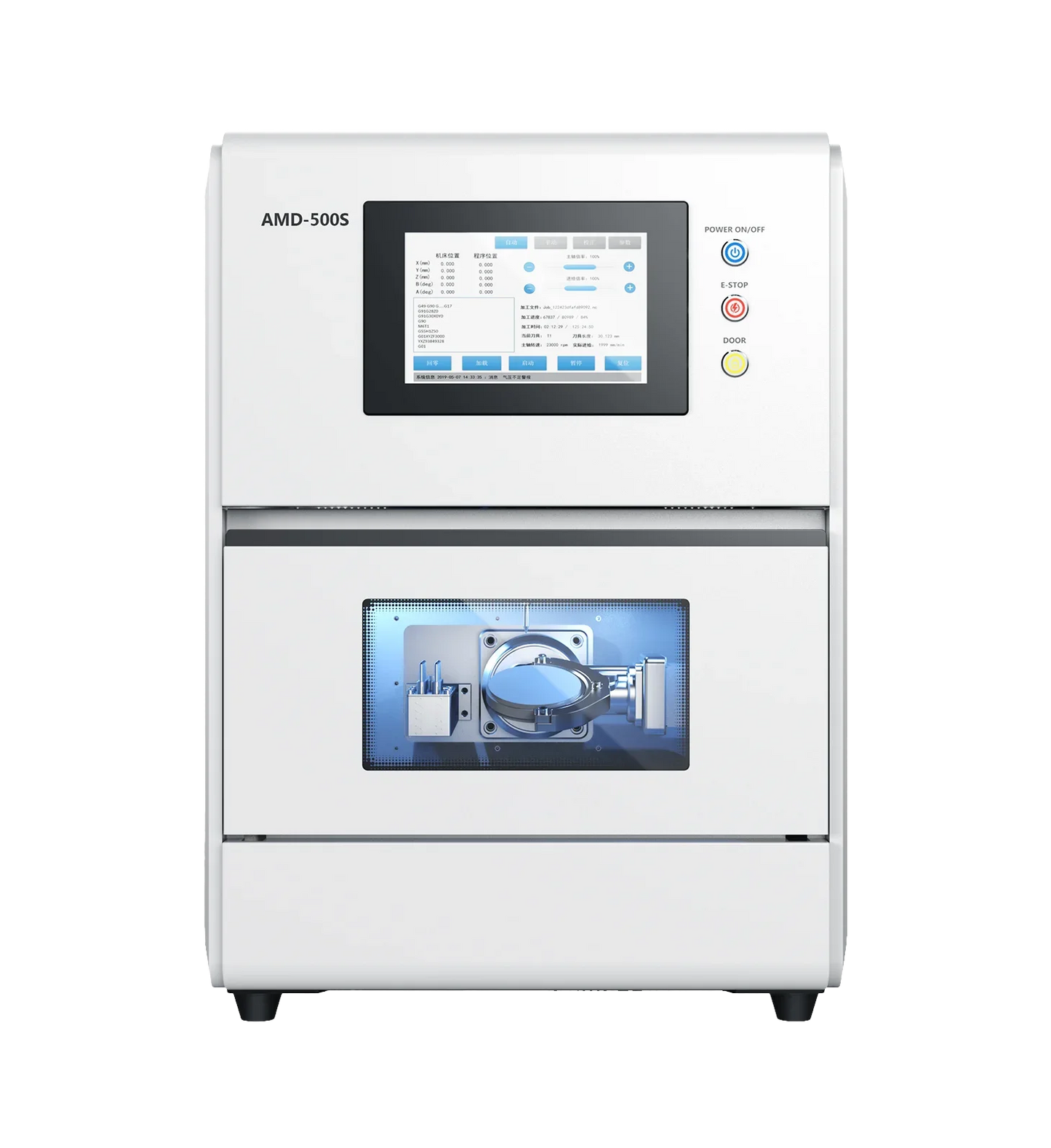

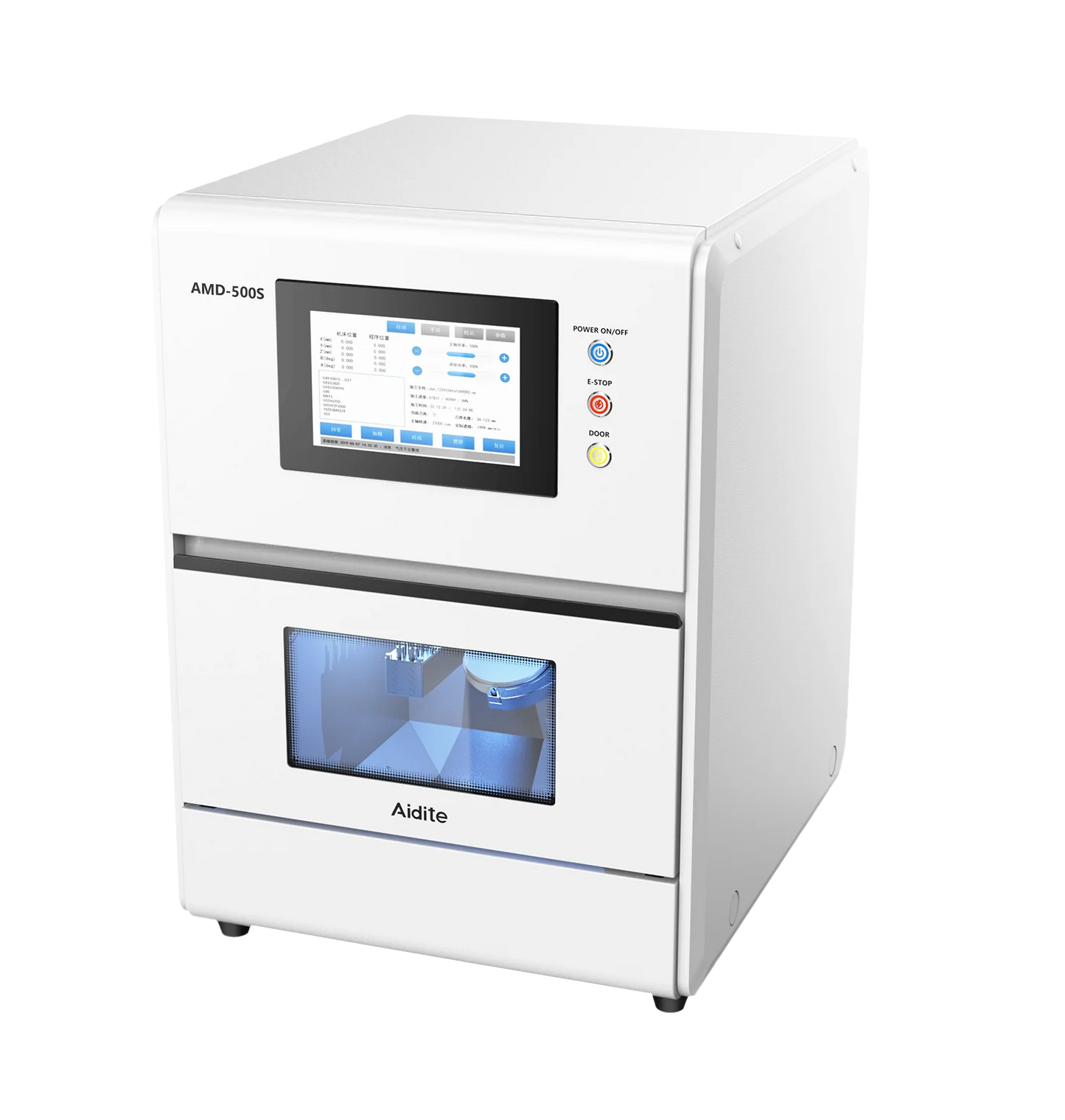

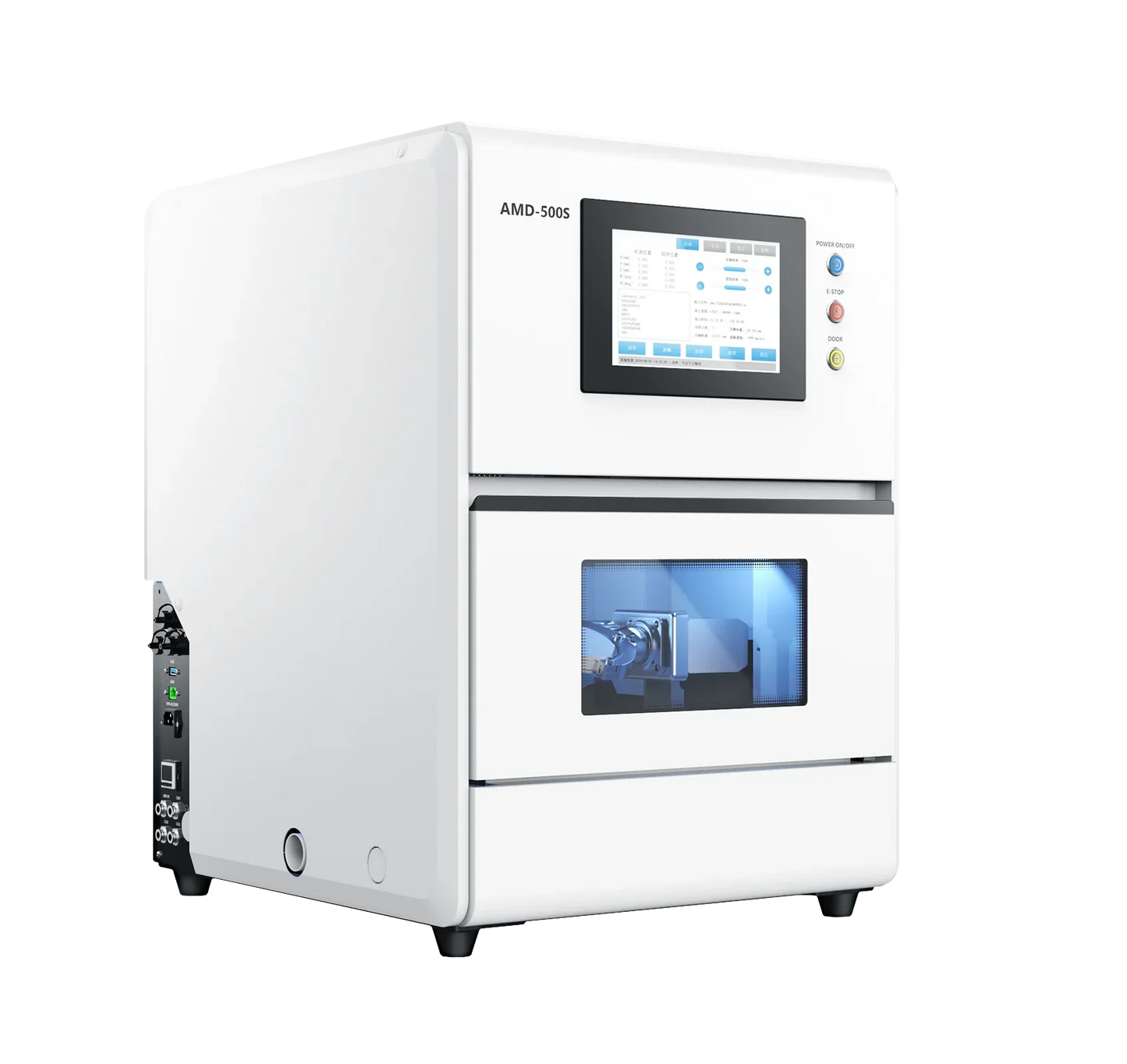

| Platform | Aviation Aluminum Casting Structure |
| Size | 590x730x820mm |
| Weight | 180kg |
| Number of axes | 5-axis Linkage Zirconia Milling Machine |

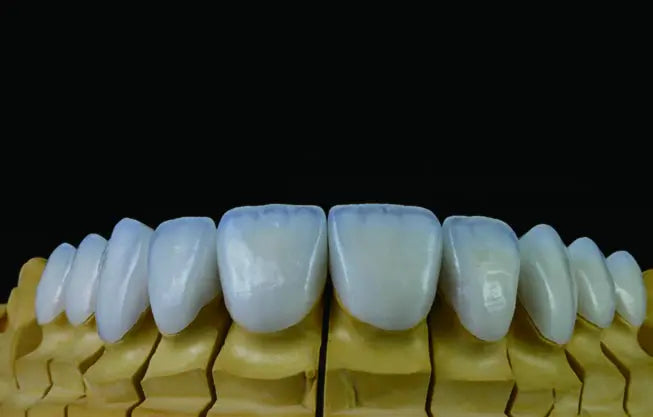

| Processing type | Single Crown, Bridges, Veneers, Inlays, Abutments, Screw-retained Crowns, Screw-retained Bridges (Implantation Needs To Add A Separate Nesting Module) |
| Processing methods | Dry Milling |

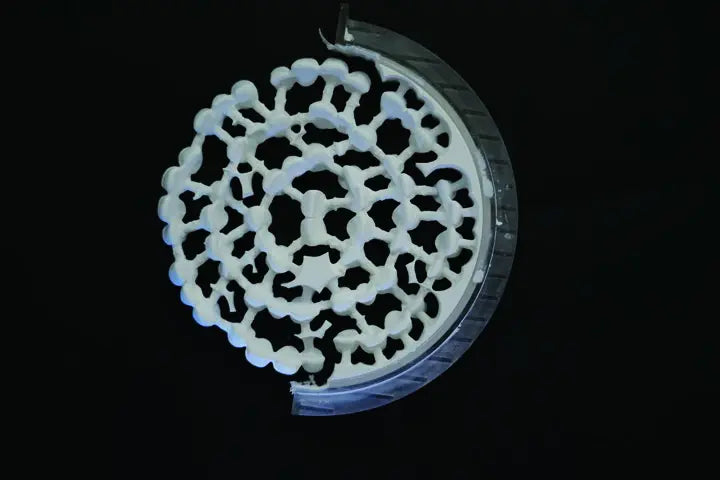

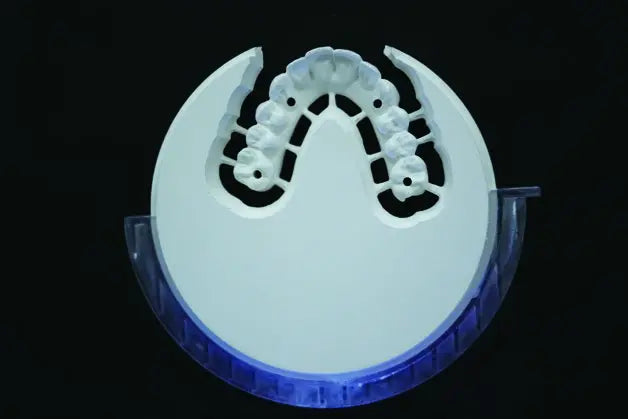

| Processing material | Zirconia, PMMA, Wax, And Other Dry-milling Dental Soft Materials |
| Processing material thickness | 10-30mm |
| Repeatability | ± 5μm |
| Linear drive system | Linear Guide And Screw |
| Rotary drive system | Harmonic Reducer |
| Control System | Embedded CNC System And AC Bus Servo Motor |
| Automatic tool change quantity | 10 Pieces |
| 90° buccal processing | Support |
| Safety door | Support |
| Travel |
XYZ Axis: 180x110x100(mm) BA Axis: B: ±30°, -90°; A: ±360° |
| Spindle |
Power Consumption: AC 1500W Water Cooling Speed: 60000rpm Chuck Size: Φ4 mm |
| Power supply | Single-phase AC 220V 50/60Hz Voltage |
| Power consumption | 1.6kW 8A |
| Pressure | 6bar |
